3.2 inch TFT LCD Display Module with 240x320 Resolution and Parallel MCU 16Bit Interface for Household Appliances

Place of Origin : Guangdong, China

Brand Name : Genyu

MOQ : 10

Price : CN¥19.57-27.39

Display Size : 3.2 inch

Display Mode : 240*320

Drive IC : ILI9341V

Interface : Parallel MCU 16Bit

Viewing Angle : 12 O'clock

Backlight : White LED

Power Supply : 3.3 V

Module Size : 55.04x77.7x2.4 mm

Active Area : 48.6*64.8 mm

Luminance : 260 cd/m2

Resolution : 240RGBx320 pixel

Operating Temperature : -10~60 °C

Display Type : TFT

Structure : LCD + IC + FPC + BL

Viewing Direction : 12 o'clock

Contact Now

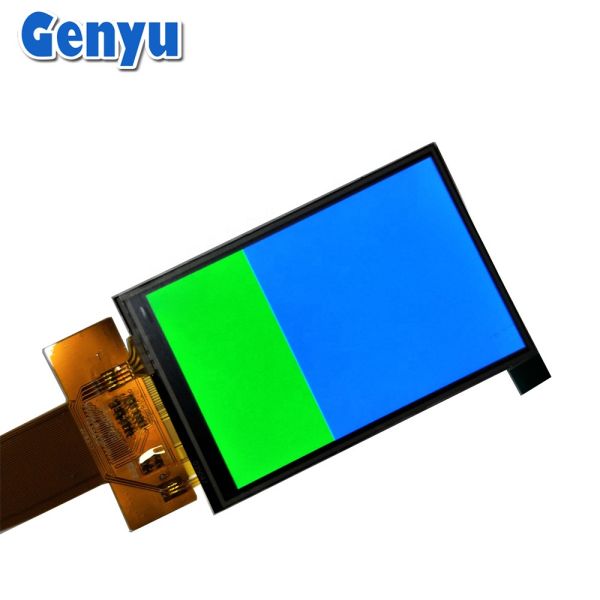

3.2 Inch 240x320 TFT LCD Display Module
Compact 3.2 inch TFT LCD module with 240x320 resolution, designed specifically for household appliance applications.
Product Images
3.2 inch TFT LCD Display Module with 240x320 Resolution and Parallel MCU 16Bit Interface for Household Appliances 3.2 inch TFT LCD Display Module with 240x320 Resolution and Parallel MCU 16Bit Interface for Household Appliances
Technical Specifications
Display Type 240RGB × 320 Dots TFT LCD
Screen Size 3.2 inch
Interface Parallel MCU 16Bit / 8Bit
Controller IC ILI9341V
Luminance 260 cd/m²
Power Supply 2.8V
Resolution 240RGB × 320 pixels
Module Size 55.04 × 77.7 × 2.4 mm
Viewing Area 48.6 × 64.8 mm
Viewing Direction 12 o'clock
Operating Temperature -10°C to 60°C
Pin Definition
Pin No. Pin Name Pin No. Pin Name
1 GND 25 GND
2 VCC(2.8V) 26 YD
3 IOVCC 27 XR
4 CS 28 YU
5 RS 29 XL
6 WR 30-34 LEDK1-LEDK5
7 RD 35 NC
8 RESET 36 LEDA
9-24 DB1-DB17 37 IMO
Structure Details
LCD + IC + FPC + Backlight integrated module design
Packaging & Shipping
Payment Terms
T/T, Western Union, Paypal - Please contact us before payment
Delivery Time
  • Items shipped within 3 working days after payment
  • DHL/UPS/FedEx/TNT: 2-5 working days
  • EMS: 7-10 working days
  • CPAM/HKPAM: 10-30 working days
Packaging
  • Anti-static bag or Bubble bag (for samples)
  • Plastic pallet
  • Carton box
Our Advantages
  • Detailed Datasheets: Complete technical documentation including screen/module/driver IC specifications and application circuits
  • Source Code Support: Comprehensive source code or initialization code provided
  • Technical Support: Experienced engineering team offering comprehensive technical services
  • Customization Services: Custom FPC, PCB, and module design available
  • Solution Development: Special function solutions tailored to your requirements
Quality & Service Commitment
Technical Support: Available throughout your development process
Quality Assurance: All products undergo aging tests with 100% visual and electrical inspection
Product Compatibility: Advanced notification of upgrades with perfect backward compatibility
Warranty: 12-month product warranty period
Frequently Asked Questions
Production Capacity
30,000m² production facility with over 800 personnel across LCD/LCM divisions
Quality Control
ISO9001, RoHS, CE certified with comprehensive quality control from start to finish
Minimum Order Quantity
No strict limits for standard models; Custom models MOQ depends on LCD size
Lead Times
Standard models: stock or 1-2 weeks; Custom models: 5-6 weeks
Samples
Free samples available with free shipping in China; Custom LCD typically 5-8 free samples
Customization
Full OEM services available including TN, HTN, STN, FSTN VA/BTN LCD displays and touch panels
Product Range
LCD Display, AMOLED Display, OLED Display, TFT LCD, Backlight, Custom LCD, COG LCD, COB LCD Module, TFT LCD Module, Graphic LCD display, Segment LCD, 128x64 LCD
Technical Support
Complete technical drawings, driver IC data, initialization codes, and engineering support
Factory Locations
Shenzhen and JiangXi Province factories - Welcome to visit with pickup service from Shenzhen Bao'an Airport or High-way Shenzhen North station
Contact Information
Contact: Erica
Experience: 20 years in micro LCD panel manufacturing
Services Offered:
  • Small order acceptance
  • High quality with competitive pricing
  • Guaranteed mass production lead times
  • Free technical services
  • Sufficient spares with each order
